Switch Activation

Switch Activation mechanisms provide specialized, automated solutions for testing physical switches, push buttons, micro-switches, and toggle controls directly on printed circuit board assemblies (PCBAs). Modern electronic assemblies across automotive, industrial, and consumer applications frequently feature user-interface controls that must be physically depressed or toggled to verify electrical continuity, tactile feedback, and contact resistance during functional testing. Integrating automated switch activation options directly into test fixtures eliminates manual operator interactions, ensuring uniform mechanical force and accurate electrical measurements across every production cycle.

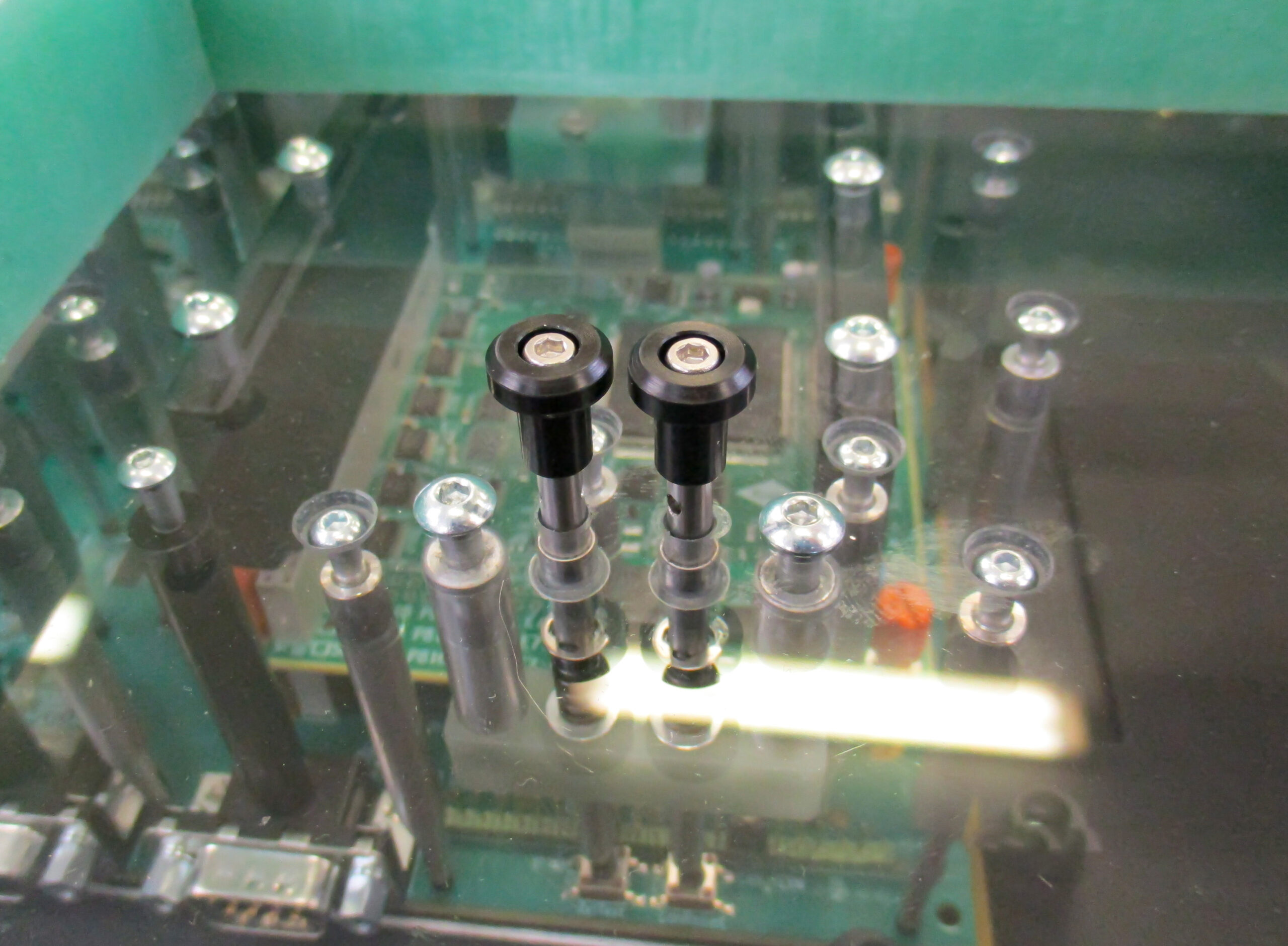

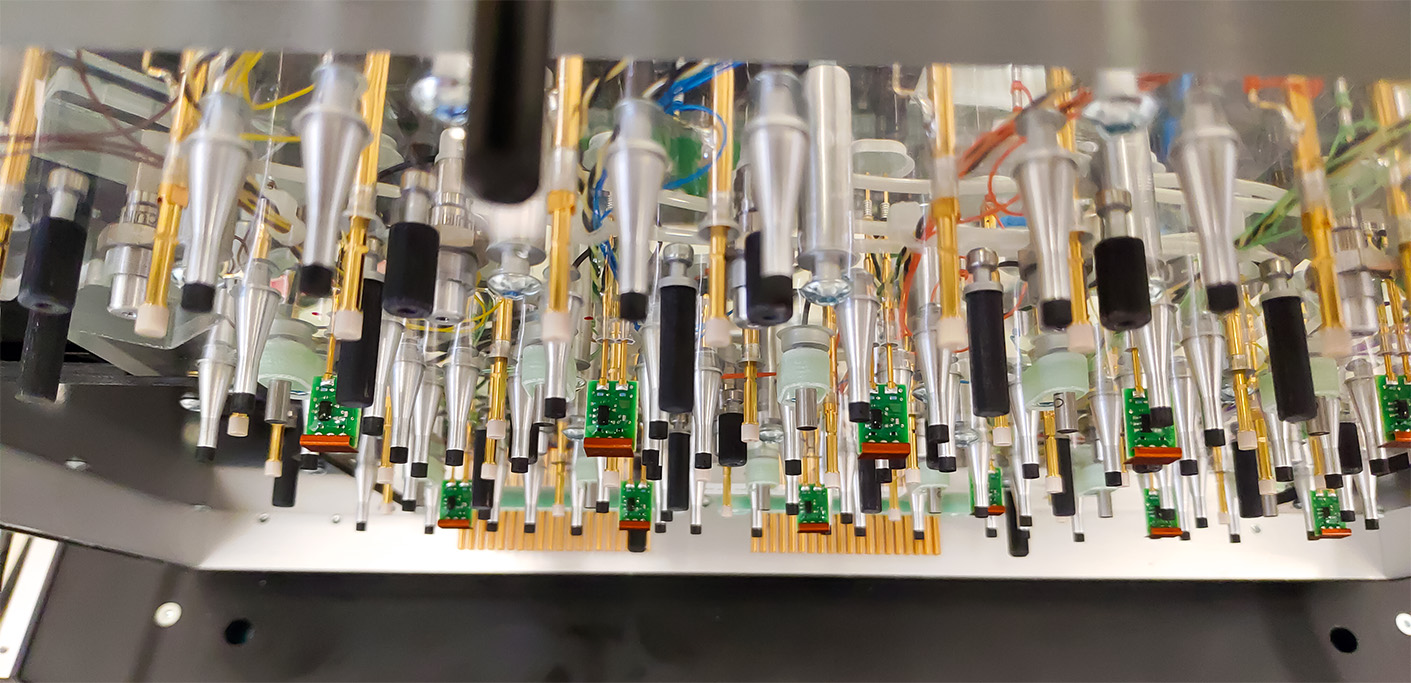

By incorporating custom pneumatic actuators, spring-loaded push rods, and precision mechanical linkages into In-Circuit Test (ICT) and Functional Test (FCT) fixtures, the system can actuate individual switches or multi-button arrays automatically during the test routine. These switch activation assemblies engage target buttons at exact angles and specified pressing forces, ensuring that physical contacts close fully without damaging delicate tactile domes, rubber keypads, or surface-mounted components. This synchronized actuation enables the test system to evaluate button response times, signal debouncing, and circuit closure in real time.
